Low Voltage Transformer
OverviewThis series transformer is made of thermosetting resin material. It has good electrical properties, mechanical properties and flame retardant properties with smooth surface, uniform color. Suitable for current and energy measurement and (or) relay protection in power lines with the situation that rated frequency 50Hz and rated voltage under and including 0.66kV. In order to make installati... -
Zero Sequence Transformer
OverviewThis series of transformer is made of thermosetting resin material, which has good electrical properties, mechanical properties and flame retardant properties. It is used with relay protection devices or signals when the power system produces zero sequence grounding current. It enables the device components to make movement and realize the protection or monitoring.Previous:Single&Three Pha... -

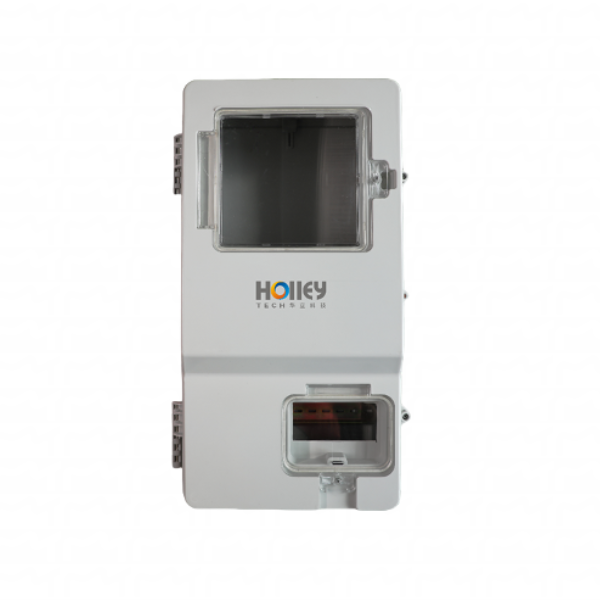

Single&Three Phase Meter Box
SpecificationsNominal Voltage230/400VRated Isolation voltage1kVRated Frequency50HzRated Current63ARated Short-circuit current @1s6kAEnclosure MaterialPC, ABS, Alloy, Simple metal(Optional)Installation locationIndoor/OutdoorProtection ClassIP54Seismic CapacityIK08Fireproof PerformanceUL94 – V0ColorGrayVaristor Imax20kAStandardIEC 60529DimensionHLRM-S1:209.5mm*131mm*400mmPXS1:323mm*131mm*550mmHigh p... -
Single Phase Meter Box
SpecificationsThe body and bonnet are die-cast from polycarbonate injected into PC.The lid is made of transparent polycarbonate for easy viewing of meter readings.Insulated case, no exposed conductor, high safety factorNatural convection ventilationResistant to rain and dustEquipped with instrument mounting accessories, C type automatic circuit breaker and reactive capacitorThe anti-collision lock... -

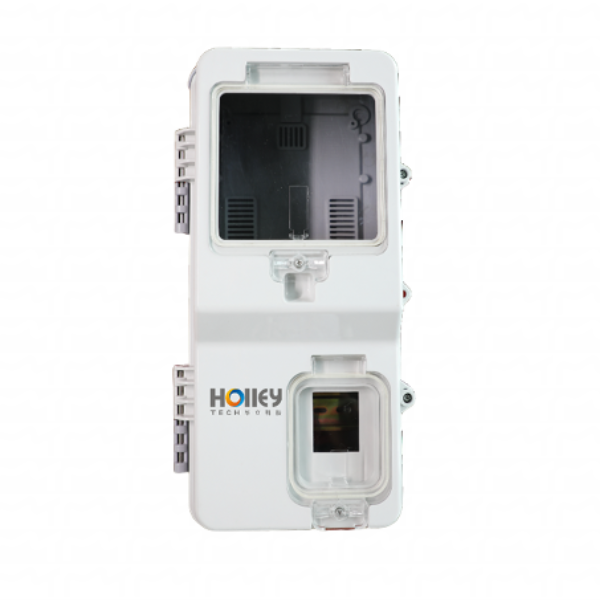

Single&Three Phase DIN Rail Meter Box
SpecificationsNominal Voltage230/400VRated Isolation voltage1kVRated Frequency50HzRated Current63ARated Short-circuit current @1s6kAEnclosure MaterialABS+PCInstallation locationIndoor/OutdoorProtection ClassIP54Seismic CapacityIK08Fireproof PerformanceUL94 – V0ColorGrayVaristor Imax20kAStandardIEC 60529DimensionPXD1-10:180mm*260.4mm*130.6mmPXD2-40:270mm*139mm*350mmHigh performanceHigh temperature ... -
Split Type Electricity Meter Box
SpecificationsNominal Voltage230/400VRated Isolation voltage1kVRated Frequency50HzRated Current63ARated Short-circuit current @1s6kAEnclosure MaterialABS+PCInstallation locationIndoor/OutdoorProtection ClassIP54Seismic CapacityIK08Fireproof PerformanceUL94 – V0ColorLight grayVaristor Imax20kAStandardIEC 60529Dimension400mm*150mm*570mmHigh performanceHigh temperature resistanceAdvanced anti-rust wa... -
Storage and Control Composition Intelligent Switchgear
Product UsageZZGC-HY type intelligent switchgear is a switchgear product with manual meter storage and manual meterretrieval. It is composed of control cabinet and storage cabinet. A control unit can manage up to three storagecabinets. A single storage cabinet can store up to 72 single-phase meters or 40 three-phase meters. One controlcabinet can be equipped with three storage cabinets at most, wh... -
Intelligent Integrated Distribution Box
Product UsageJP series integrated intelligent distribution box is a new type of outdoor integrated distribution device integrating multiple functions such as power distribution, control, protection, metering, reactive compensation, etc. It has the functions of short circuit, overload, overvoltage, leakage protection, etc. it has compact structure, small size, beautiful appearance, economical and p... -
Cable Branch Box
Product UsageThe cable branch box is the supplemental equipment for the cable transformation of urban, rural and residential areas. The box can be equipped with circuit breaker, strip switch, knife melting switch,etc. which can connect the power cable with box transformer, load switch cabinet, ring network power supply unit, etc. play the role of tapping, branching, interrupting or switching, and ... -

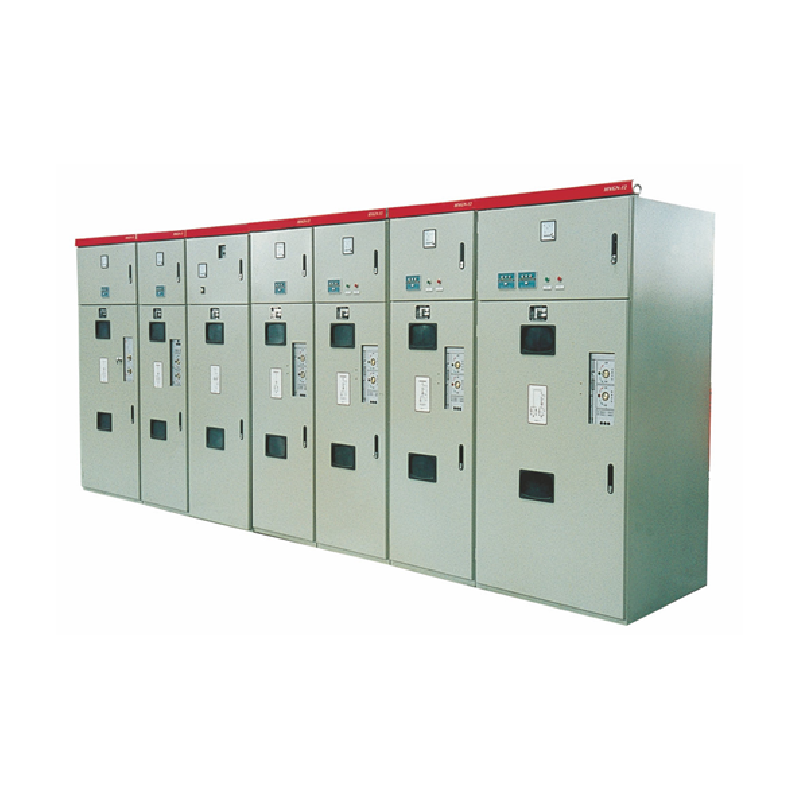

HYW-12 Series Ring Cage
Product UsageHYW-12 series ring cage is a compact andexpandable metal enclosed switchgear, which usesFLN-12 SF6 load switch as the main switch and thewhole cabinet is air insulated, suitable for distributionautomation. HYW-12 has the advantages of simplestructure, flexible operation, reliable interlocking,convenient installation, etc.Normal use environmentAltitude：1000mAmbient temperature: maximum... -
HYW-12 First And Second Ring Cage
Product UsageAccording to the requirements of State Grid Corporation’s “Typical Design of Distribution Primary and Secondary Complete Equipment”, it consists of loop-in and loop-out units, feeder units, busbar equipment (PT) units and centralized DTU units，And integrated with electronic current sensor and line loss collection terminal. The DTU unit realizes functions such as three-temperature, cab... -
GS- Diaphragm Gas Meter
STANDARD> Comply with international standard EN1359,OIML R137 and MID2014/32/EU.> Approved by ATEX II 2G Ex ib IIA T3 Gb (Ta = -20℃ to +60℃)MATERIALS> Housing made through die-casting of high-quality steel.> Diaphragm made of synthetic rubber with long life and temperature resistant.> Valve and valve seat made of advanced PF synthetic resin.ADVANTAGES> Long life>10years.> Anti-tamper proof.> Se...
