Advanced Metering Infrastructure solution
Overview:
Holley Advanced Metering Infrastructure (AMI) is a professional solution with high maturity and stability. It allows collection and distribution of information to customers, suppliers, utility companies and service providers, which enable these different parties to participate in demand response services.
Components:
Holley AMI solution is composed of these parts:
◮ Smart Meters
◮ Data Concentrator/Data Collector
◮ HES (Head-End System)
◮ ESEP System:MDM (Meter Data Management), FDM (Field Data Management), VENDING (Prepayment Management), Third party interface
Highlights:
Multiple Aapplications
High Reliability
High Security
Cross Platform
High Integrity
Convenient Operate
Multiple Languages
High Automation
Timely Upgrading
Large Capacity
High Response
Timely Release

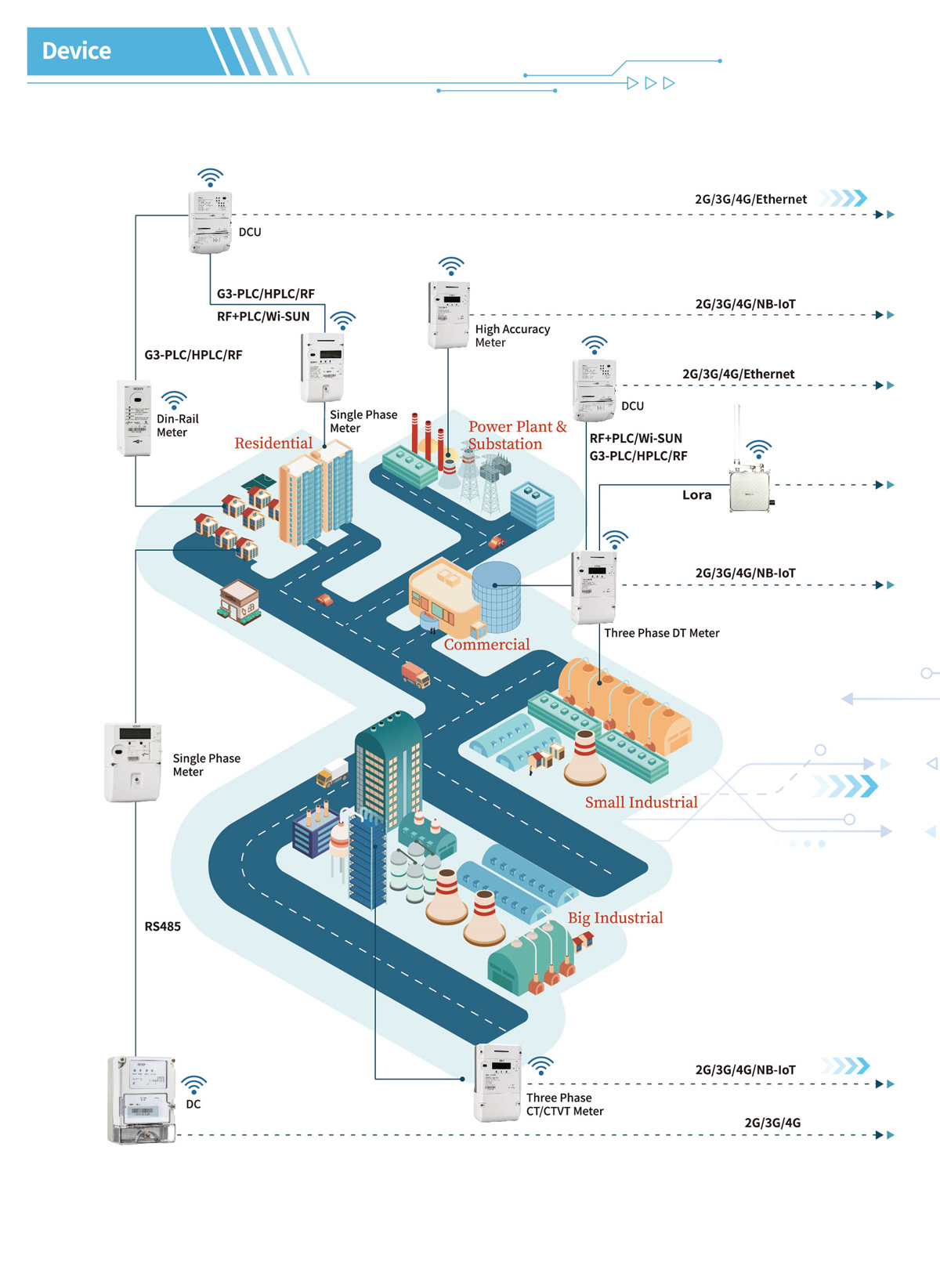

Communication:
Holley AMI solution integrates multiple communication methods, international standard DLMS communication protocol, and has been implemented with a variety of meters Interconnection, combined with the application of cloud computing and big data processing, can meet the access and management needs of large quantities of equipment.
Application Layer |
DLMS/HTTP/FTP |
|||||||
Transport Layer |
TCP/UDP |
|||||||
Network Layer |
IP/ICMP |
|||||||
Link layer |
Near Field communication |
Long distance cellular communications |
Long distance Non-cellular communication |
Wire communication |
||||
Bluetooth |
RF |
GPRS |
W-CDMA |
WIFI |
PLC |
M-Bus |
USB |
|
FDD-LTE |
TDD-LTE |
G3-PLC |
LoRa |
RS232 |
RS485 |
|||
NB-IoT |
eMTC |
HPLC |
Wi-SUN |
Ethernet |
Head-End System (Main Server)
Database Server
Utility Application Server
Head-End Server
Customer Application Server
Data Process Server
Data Exchange Server

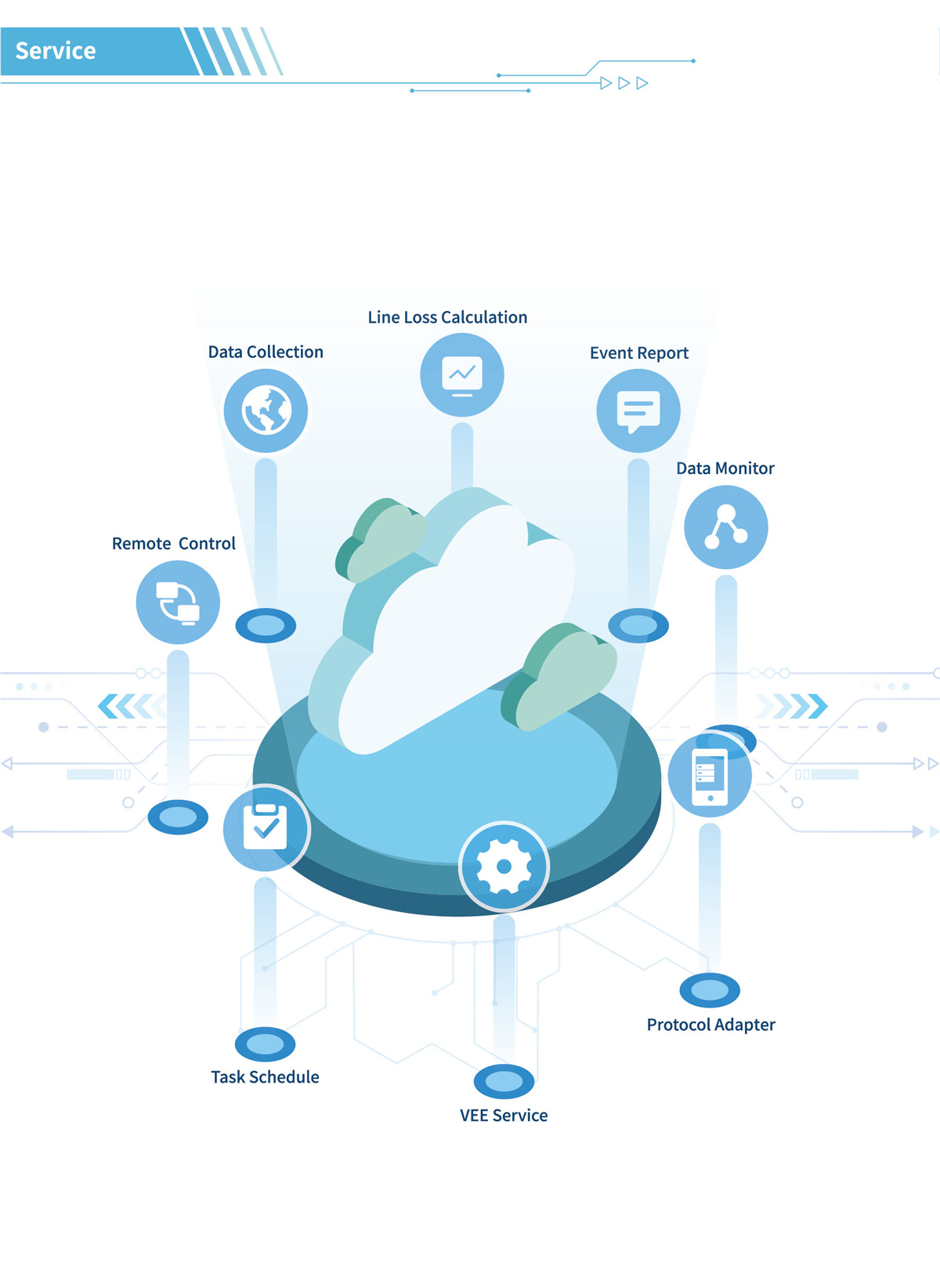

ESEP System:
The system is the core of Holley AMI solution. ESEP uses a hybrid B/S and C/S system which based on .NET/Java architecture and the topological graph, and integrates web-based data management as its core business. ESEP system is that measure, collect, and analyze energy usage, and communicate with metering devices, either on request or on a schedule.
● MDM system is using for collect smart meter data and storage to database, through process meter demand data, energy data, instantaneous data and billing data, provide data analysis and line loss analysis result or report to customer.

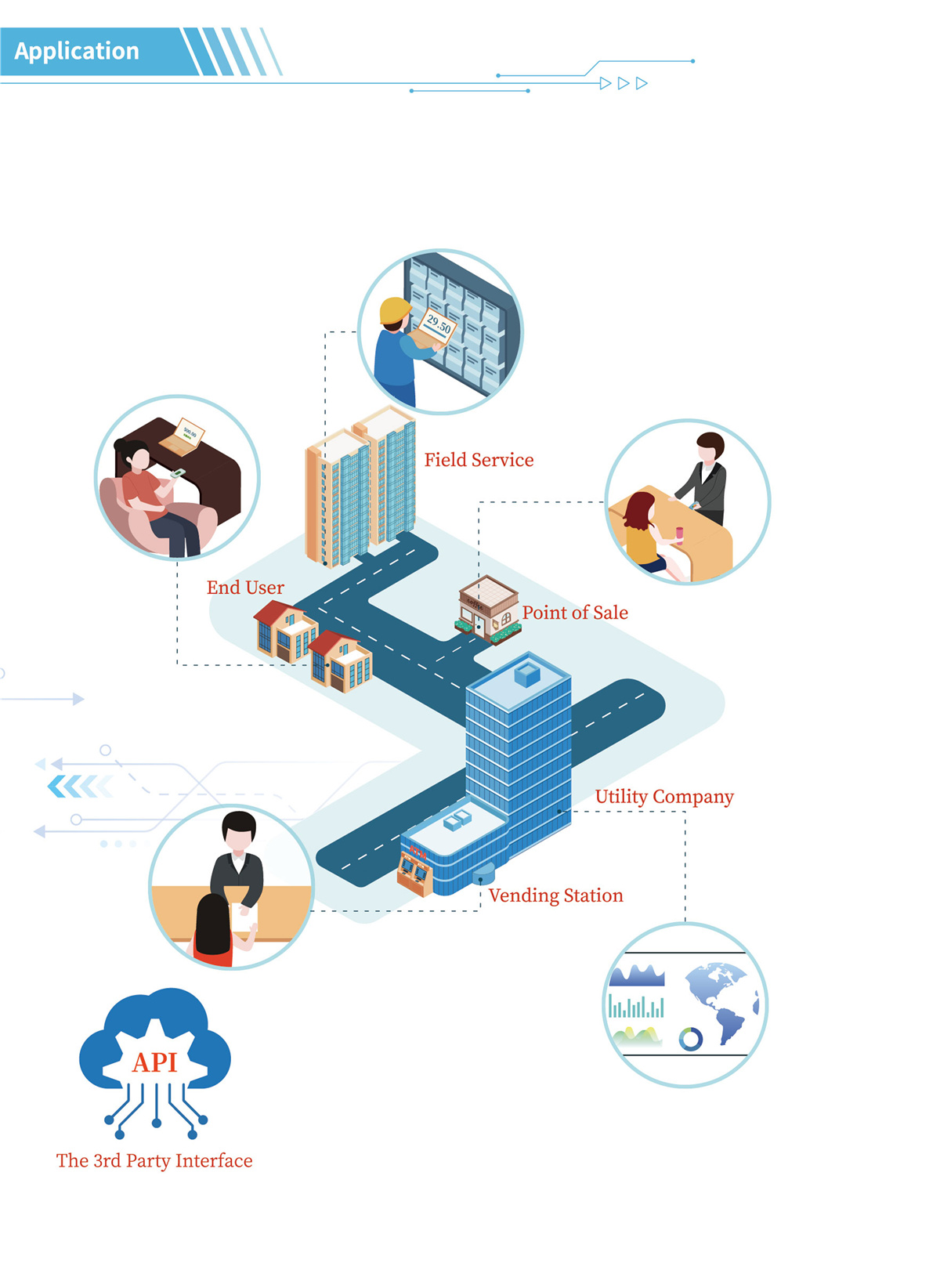

● Prepayment system is a flexible vending system that supports different vending channels and medium. This system helps utility to facilitate the route of Meter-to-Billing and Billing-to-Cash, improves their liquidity and guarantees their investment.
● Holley AMI system can be integrated with third-party interface (API) such as banks or billing companies to provide value-added services, providing a variety of sales methods and 24 hours a day service. Through the interface to get the data, do the recharge, relay control and meter data management.
