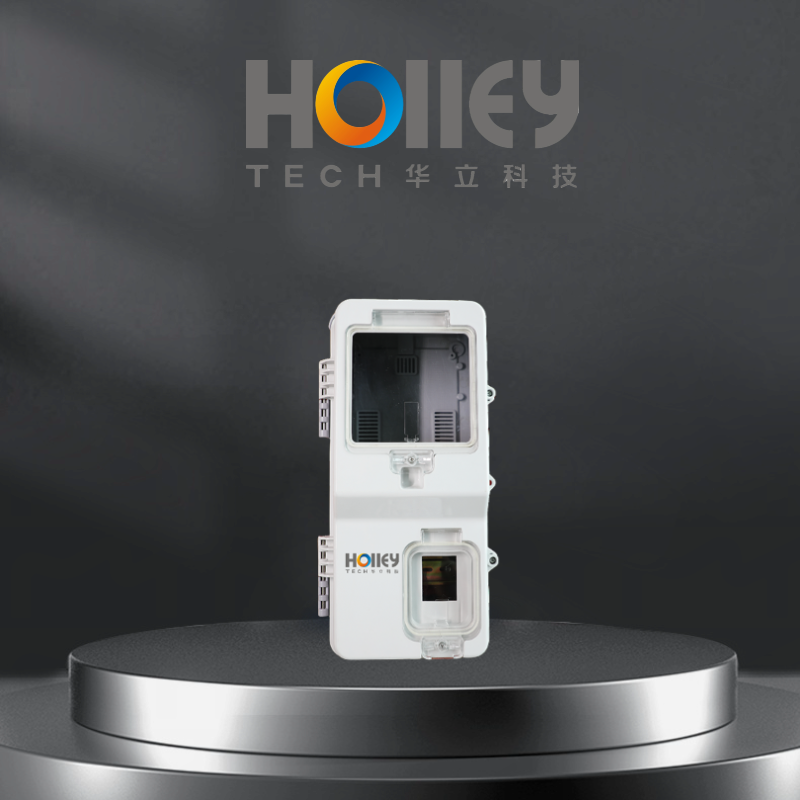

PXD1-1 is used for single phase meter and has the characteristics of anti-dust, waterproof. UV resistance, high flame-retardant grade and high strength. It can be made of PC, ABS Alloy or Simple metal. It adopts two installation methods that are hooping with stainless steel mounting straps and Screwing, which is suitable for telegraph poles and wall installation respectively
Specification
|
Parameters |
value |
|
Nominal voltage |
230V |
|
Rated isolation voltage |
1kV |
|
Rated frequency |
50Hz |
|
Rated current |
63A |
|
Rated short-circuit Current @1s |
6kA |
|
Enclosure material |
PC, ABS, Alloy, simple metals (optional) |
|
Installation location |
Indoor/outdoor |
|
Protection class |
IP54 |
|
Seismic capacity |
IK08 |
|
Fireproof performance |
UL94-V0 |
|
Colour |
Grey |
|
Carislor imax |
20kA |
|
Standard |
IEC60529 |
|
Dimension |
399.11mm*210mm*121mm(95mm) |
|
Installation methods |
Pole mounting |
